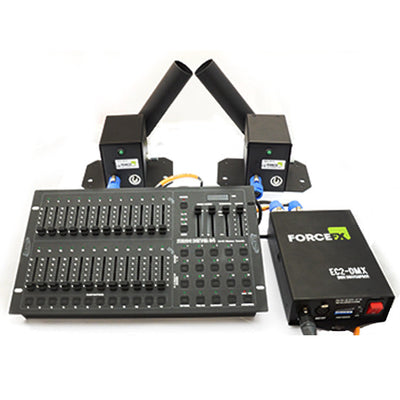

The ForceFX EC2-DMX Switch Pack is a professional 2-channel DMX power switch designed to control CO2 jets and other mains powered special effects directly from a DMX lighting console.

Built to ForceFX’s specifications and manufactured by a leading European theatre electronics company, it features a rugged design, two independently switched 10A outputs, Neutrik PowerCON® connectors, and 3-pin XLR DMX input/output for reliable operation in touring, hire, theatre, and live event environments.

Simple DIP switch addressing allows fast setup, while the 230V power pass-through enables multiple units to be daisy-chained for larger installations.

Please note: A mains power cable is not included but can be supplied separately in 13A, 15A or 16A versions.

Specifications

Control: DMX512 compatible
Channels: 2 independently switched power outputs
Output Rating: 10A per channel

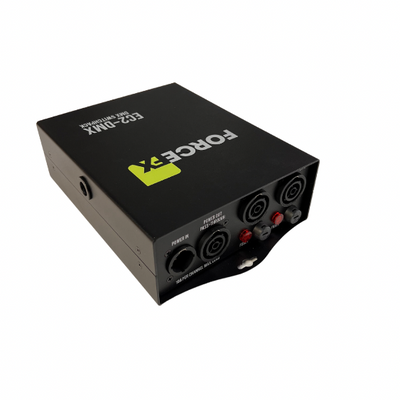

Power Connectors: Neutrik PowerCON® input and output

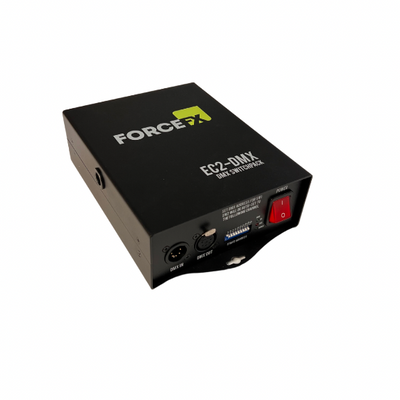

DMX Connections: 3-pin XLR DMX input / 3-pin XLR DMX output
Addressing: DIP switch selectable DMX start address / Second output automatically assigned to the next DMX channel
Power Distribution: 230V power pass-through for daisy chaining multiple units
